Windworks Cable Stands

Windworks cable stands capable of taking steel drums of up to 40T. Fully flexible and extendable to take widths from 3m to 4m approx. Diesel powered drum drive to help in the rewind of the drum after installation.

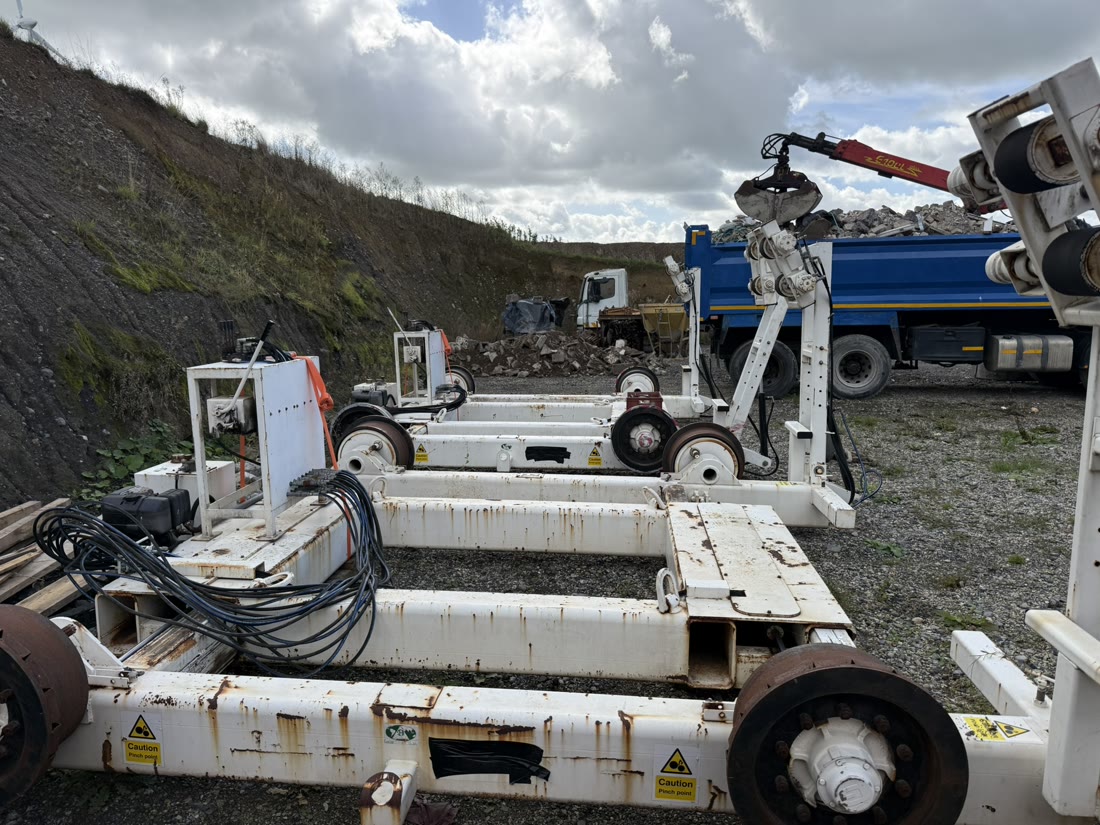

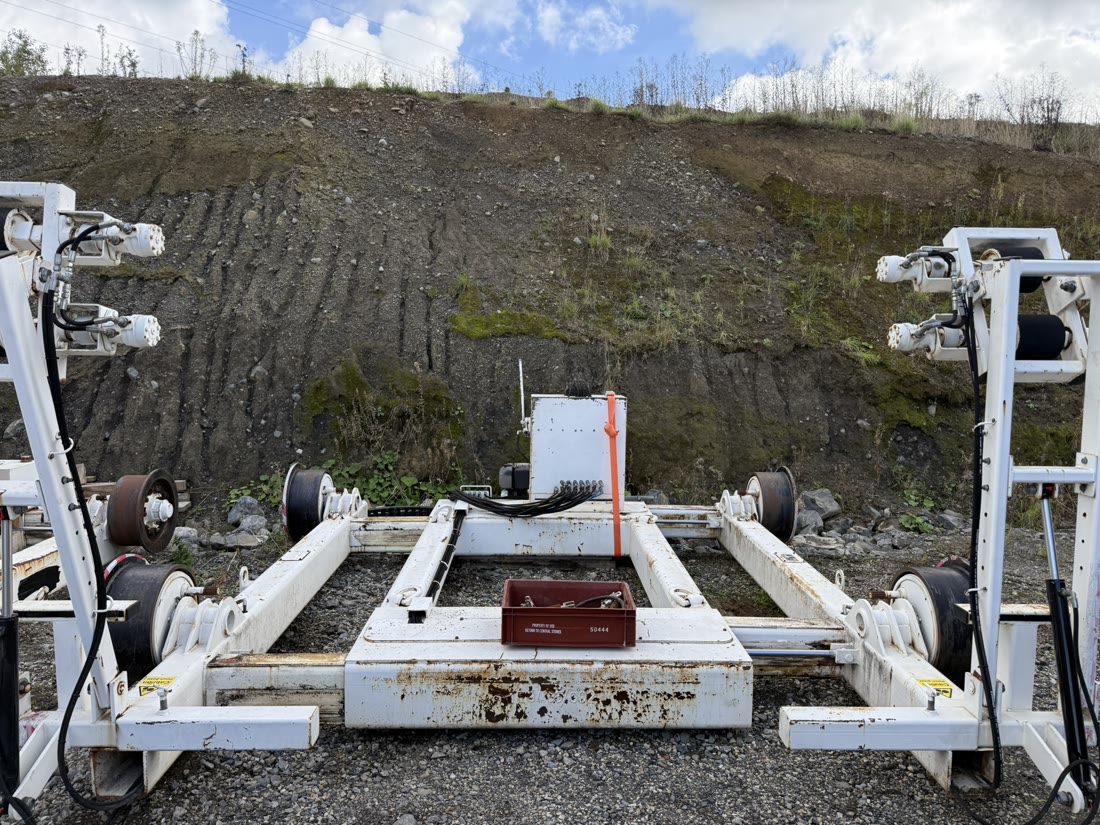

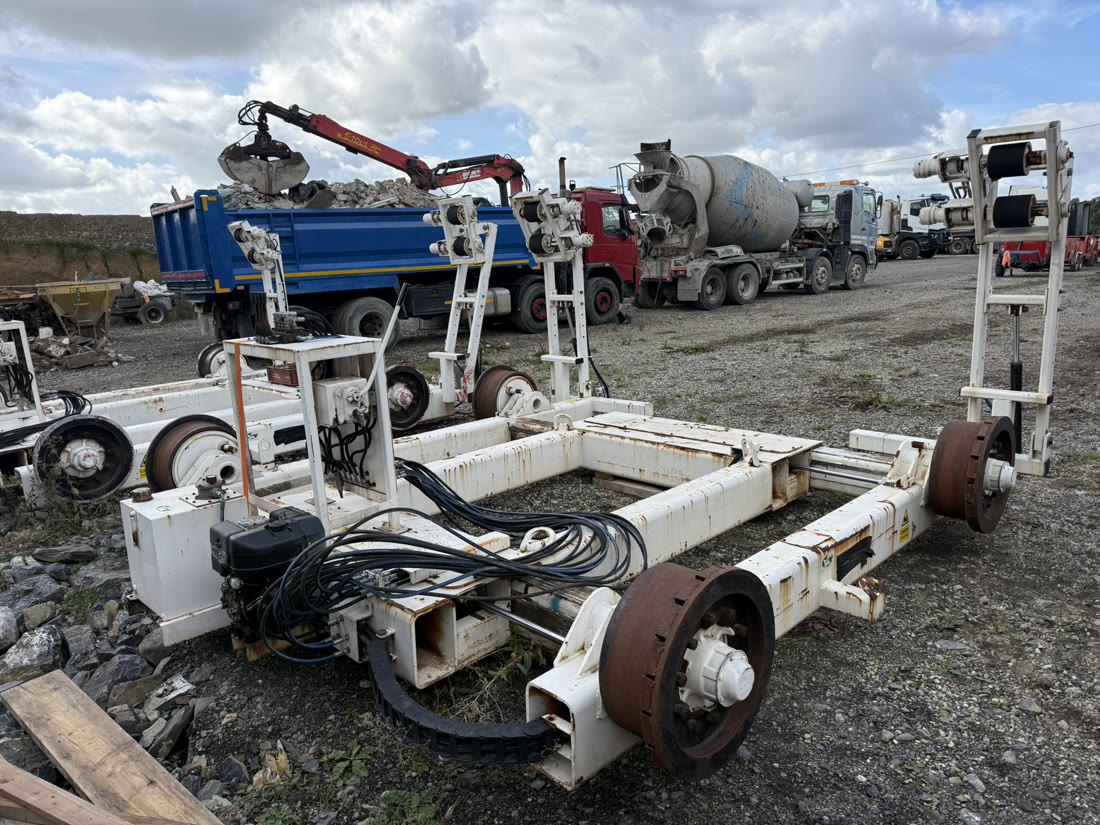

Windworks cable stands for steel drums up to 40T Cable stands with diesel powered drum drive Cable drum loaded onto Windworks cable stands

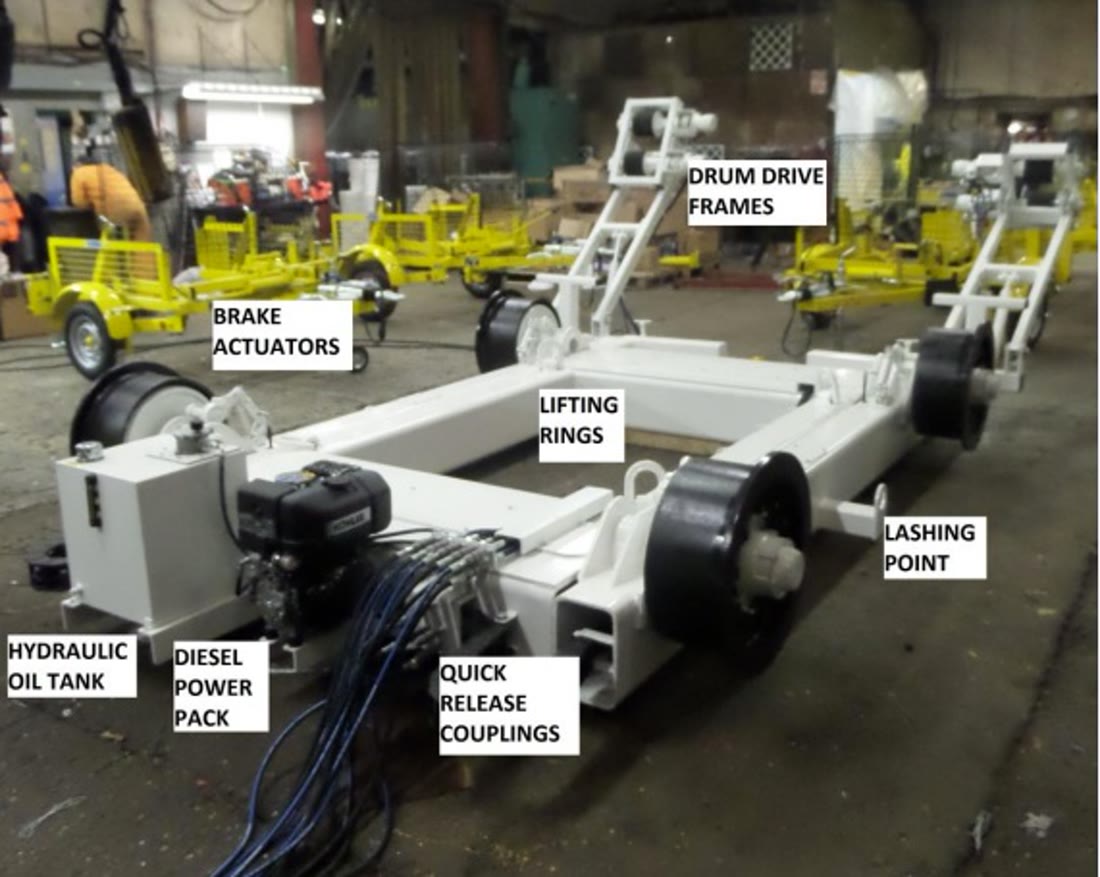

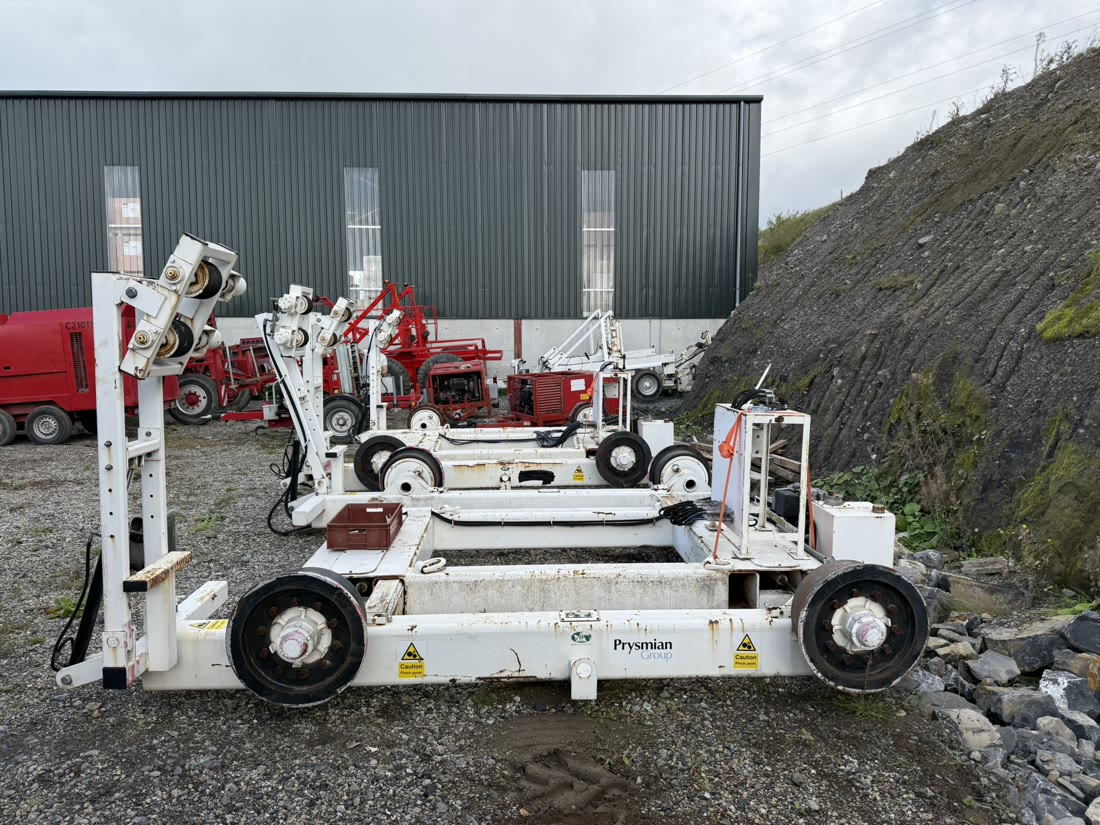

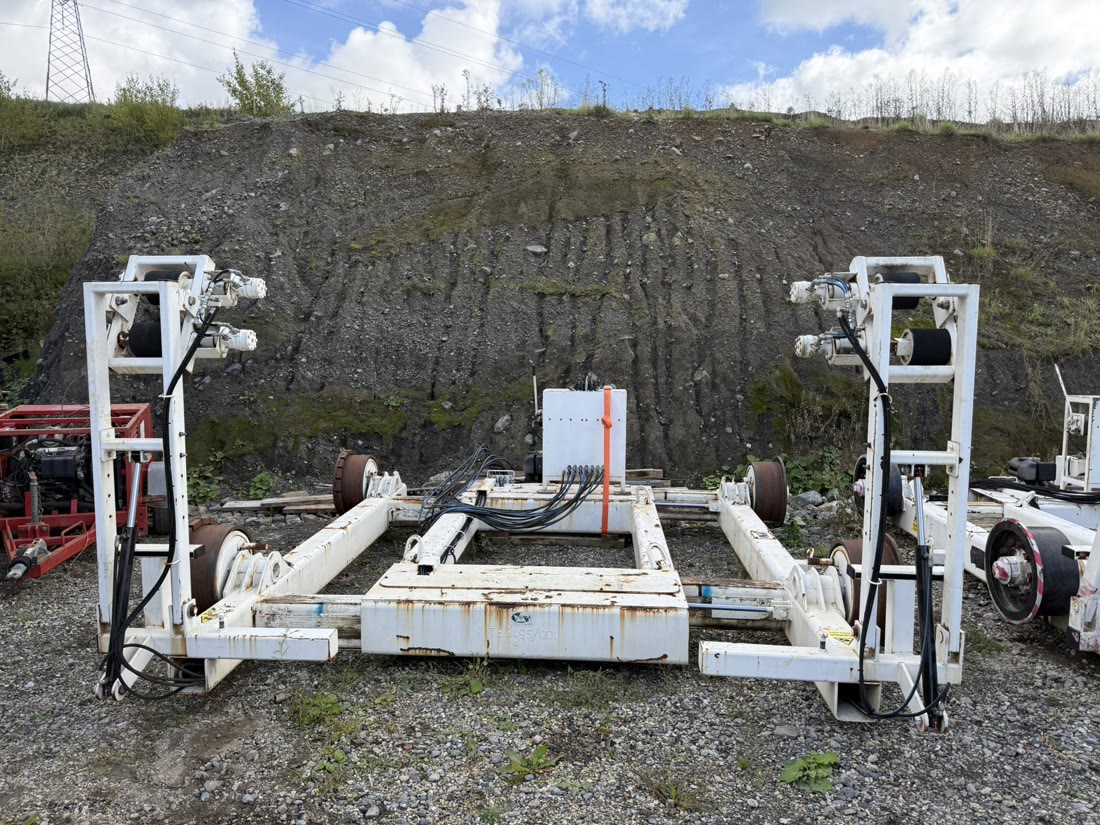

Extendable cable drum stands taking 3m to 4m widths Heavy duty cable stands rated to 37000kg safe working load Windworks cable stands layout drawing

Specification

Height2000mm (max)
Width2900mm (closed) / 4650mm (open)
Length5600mm (max)
Weight5500kg (approx)
SWL37000kg
Drum diameters3500 - 5000mm
Drum widths2650 - 3850mm
Power pack5KW diesel engine driven hydraulic pump
Controls4 spool hydraulic control valve, manual hydraulic hand pump (brakes)
Hyd motor100cc/rev orbital (4 off)
Drum drive rams30mm rod x 50mm bore x 500mm stroke (4 off)
Width adjustment rams30mm rod x 60mm bore x 600mm stroke (4 off)
Hyd oilGrade VG32
